Vector field rendering - UVraster¶
Vector fields are used for instance in meteorology to store/display wind direction and magnitude.

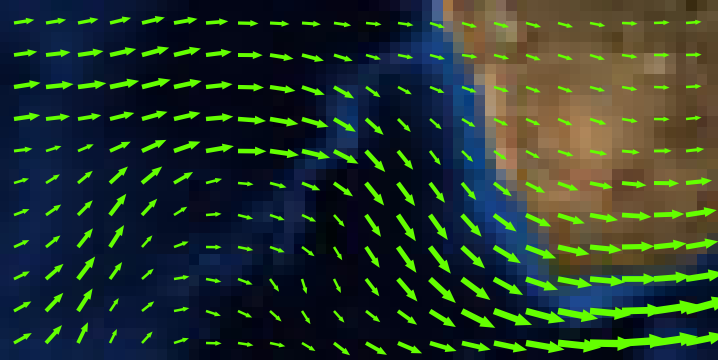

The source is two bands of raster data, the first band represents the U component of the vector, and the second band the V component. Using the u,v values at a given location we can compute a rotation and magnitude and use that to draw an arrow of a size proportional to the magnitude and pointing in the direction of the phenomenon (wind, current, etc.)
For more details about vector fields, refer to: Vector field
A vector field LAYER is a hybrid layer, which has a raster data source as input and vector features as output. The output features are represented as points. Queries are not supported.
Since the data source is a raster, all raster processing options can be used (e.g. RESAMPLE). RESAMPLE=AVERAGE generally gives a good result, and the default. This can be overridden by explicitly specifying the type of resampling.
Vector field layers are of TYPE point, and have CONNECTIONTYPE uvraster. The raster data set is specified in DATA. The two bands that define the vector field are specified using PROCESSING BANDS (U first, V second).
The UVraster connection type offers the following attributes:
[u]: the raw u value
[v]: the raw v value
[uv_angle]: the vector angle
[uv_minus_angle]: the vector angle - opposite direction
[uv_length]: the vector length (scaled with the UV_SIZE_SCALE optional value)
[uv_length_2]: half the vector length
Optional PROCESSING settings:
UV_SPACING: The spacing is simply the distance, in pixels, between arrows to be displayed in the vector field. Default is 32.
UV_SIZE_SCALE: The uv size scale is used to convert the vector lengths (magnitude) of the raster to pixels for a better rendering. Default is 1.
Example of a layer definition:
SYMBOL NAME "horizline" TYPE VECTOR POINTS 0 0 1 0 END # points END # symbol SYMBOL NAME "arrowhead" TYPE vector FILLED true #ANCHORPOINT 0 0.5 POINTS 0 2 4 1 0 0 END # points END # symbol SYMBOL NAME "arrowtail" TYPE vector FILLED true ANCHORPOINT 1 0.5 # to shift the arrowtail POINTS 0 2 4 1 0 0 -99 -99 0 1 4 1 END # points END # symbol LAYER NAME "my_uv_test" TYPE POINT STATUS DEFAULT CONNECTIONTYPE uvraster DATA /path/wind.grib2 PROCESSING "BANDS=1,2" PROCESSING "UV_SPACING=40" PROCESSING "UV_SIZE_SCALE=0.2" CLASS STYLE SYMBOL "horizline" ANGLE [uv_angle] SIZE [uv_length] WIDTH 3 COLOR 100 255 0 END # style STYLE SYMBOL "arrowhead" ANGLE [uv_angle] SIZE 10 COLOR 255 0 0 POLAROFFSET [uv_length_2] [uv_angle] END # style STYLE SYMBOL "arrowtail" ANGLE [uv_angle] SIZE 10 COLOR 255 0 0 POLAROFFSET [uv_length_2] [uv_minus_angle] END # style END # class END # layer
Νέο στην έκδοση 6.2: (MS RFC 78: Vector Field Rendering (CONNECTIONTYPE UVRASTER))
